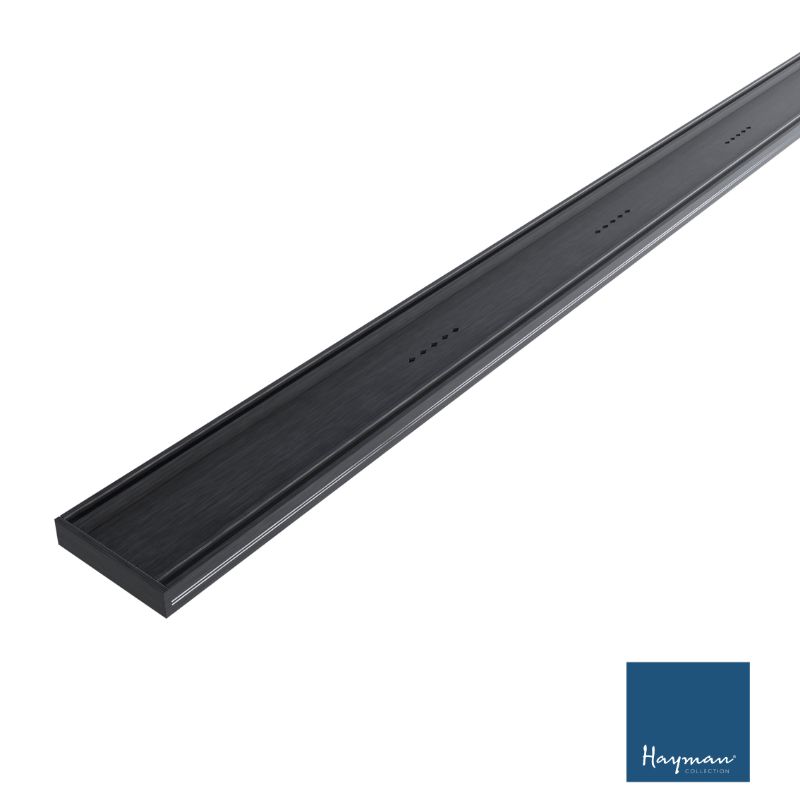

DTA Grate Tile-In Drain

Width: 100mm
Depth: 21mm, 26mm and 35mm
Finishes: brushed silver, brushed gold*, brushed black, brushed nickel, Brushed Gun Metal and Brushed Copper
Screed level marks to assist with installation

*Gold not suitable for outdoor use

END CAPS

Width: 100mm
Depth: 14mm, 21mm, 26mm
and 35mm
Finishes: brushed silver, brushed gold, brushed black, brushed nickel, Brushed Gun Metal and Brushed Copper
Thickness: 4.6mm

JOINERS

Depth: 14mm, 21mm, 26mm and 35mm
Finishes: black, silver and gold
Available in:

• Straight
• 90 degree

OUTLETS

Diameter: 40mm, 45mm and 76mm
Depth: 50mm
Finishes: black, silver and gold
Quantity: 1 per pack
Outlets can be placed in desired location on drain

APPLICATION

35mm depth:

• For use with thick materials such as pavers and screeds
• Commonly used on Balconies and Pool decking
• Tile Insert depth Up to 18mm thick

26mm depth:

• For use with tile and porcelain pavers
• Commonly used in Showers, Bathrooms, Balconies and Pool decking
• Tile insert depth Up to 11mm thick

21mm depth:

• For use with tile and porcelain pavers
• Commonly used in Showers, Bathrooms, Balconies and Pool decking
• Tile insert depth Up to 11mm thick

14mm depth:

• For use with tile
• Low profile great for use with hobless shower recess, Showers, Bathrooms, Balconies and Pool decking
